Sub-Zero's integrated drawers are undercounter refrigerator, freezer, or combination units that slide into an island or a run of cabinetry where a full column won't fit. Our techs at Sub-Zero Refrigerator Repair service the ID drawer line out of warranty, where the wear points are as much mechanical — the slides and soft-close — as they are refrigeration.
Mon–Sat 8am–8pm · Sun closed · Requests 24/7 online, phone & chat
Series identity

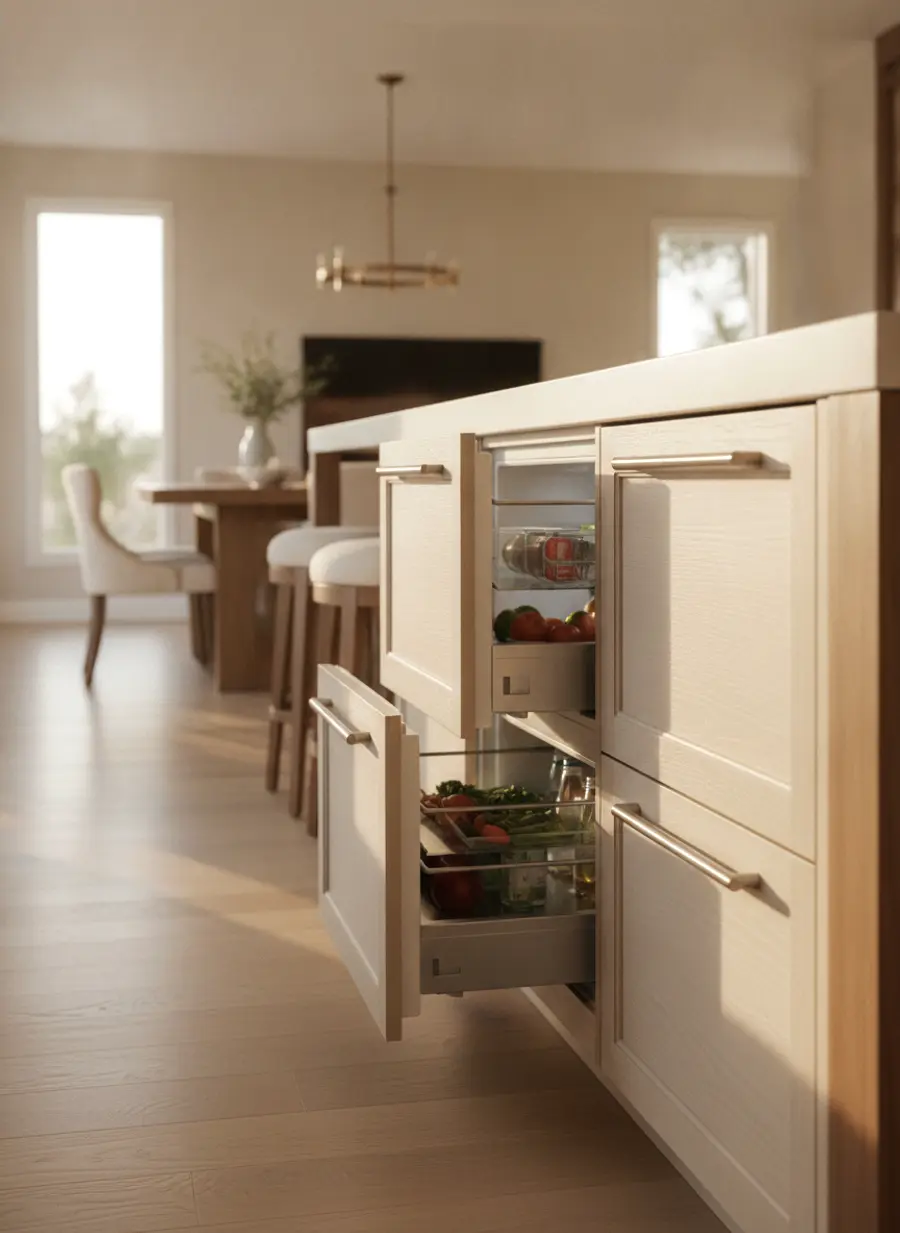

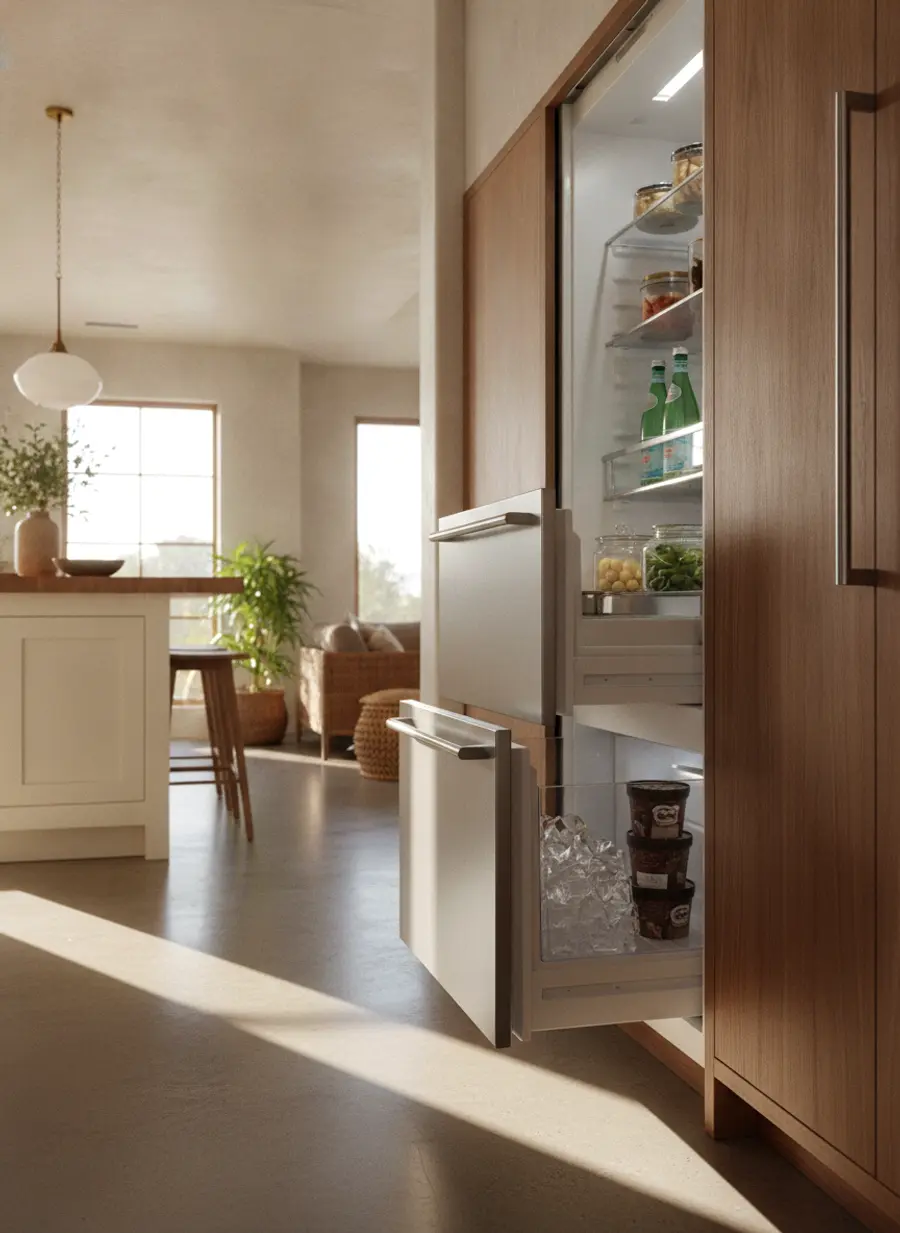

Drawer units carry an ID prefix with the width and function — ID-30R (30-inch refrigerator drawers), ID-30F (freezer), ID-30C and ID-30CI (combination, the CI adding ice), and ID-24C in the narrower width. They live below the counter, often in an island, with paneled drawer fronts.
Drawers exist precisely for placements a tall column can't serve — a prep zone in a kitchen island, a butler's pantry, a bar. That puts them in high-traffic, hands-on spots, which is exactly why their wear pattern tilts toward the mechanical hardware rather than the refrigeration most people expect to fail first.
Models we service
ReferenceUndercounter ID drawer line. Common service: drawer slides / soft-close, door gaskets, and on -C/-CI combos the freezer and ice side.
What tends to fail
The defining wear point. Drawers are opened and loaded constantly, so the slides and the soft-close mechanism take real abuse — sticking, sagging, or failing to close fully is the most common reason we're called to an ID unit.
A drawer that doesn't close fully, or a gasket that's worn, lets warm air in around the seal. In a shallow undercounter unit that shows up quickly as temperature drift and condensation.
On combination units (the -C and -CI models), the freezer drawer and, on CI, the ice function add their own faults — frost, a fill or harvest issue on the ice side — separate from the refrigerator drawer.
Undercounter drawers have little internal volume, so airflow and a healthy evaporator fan matter a lot to even temperature. Small obstructions or a weak fan are felt faster here than in a tall cabinet.
Drawers invite heavy, casual loading, and packing them past the airflow line or against the gasket produces warm spots and seal complaints that aren't faults at all. Part of our job is telling apart genuine wear from a unit simply asked to do too much.
How we approach it
A drawer that won't close is a slides-and-soft-close problem; a drawer that closes but drifts warm is refrigeration or a gasket. We establish which before anything else.
We confirm the drawer actually closes fully and the gasket meets evenly, since a soft-close fault and a sealing fault feed each other.
On -C and -CI units we diagnose the refrigerator drawer and the freezer/ice side independently, because they're different systems in one cabinet.
In a shallow unit we confirm air can circulate and the evaporator fan is healthy before suspecting the sealed system.
Repair or replace
Drawer units are unusually repair-friendly because so many of their faults are mechanical — slides, soft-close, gaskets — which are serviceable parts on a current line with good support. There's rarely a reason to replace an integrated drawer unit over these.
On the ice side of CI combos, we apply the same honesty we bring to any ice maker: it's usually a valve, a line, or a harvest issue rather than the whole module, and we'll tell you which.
Because drawers sit inside finished cabinetry — often a custom island — replacing one is far more involved than the part-level repair the actual fault usually calls for. That, more than anything, is why we treat these as repair-first appliances.
Ranges are estimates (market average +35%); exact price confirmed on-site.
We quote ranges by model and fault, never a mystery flat fee, and you approve the work before we start.
Designer Drawers questions
A drawer that won't close fully is almost always the slides or the soft-close mechanism rather than anything in the refrigeration. They take constant use and eventually stick, sag, or lose their soft-close action — a mechanical repair, and a common one on ID units.
They start with ID, then width and function: ID-30R is a 30-inch refrigerator, ID-30F a freezer, ID-30C a combination, ID-30CI a combination with ice, and ID-24C the 24-inch combination. The function tells us what's inside and how it should be diagnosed.
In a shallow undercounter unit, temperature drift usually comes from a drawer not sealing fully (a soft-close or gasket issue) or from airflow — a weak evaporator fan. Because the internal volume is small, these show up faster than they would in a tall cabinet.
Yes. On the CI combination units the ice function is serviceable on its own — usually a fill valve, a line, or a harvest issue rather than the whole assembly. We diagnose the ice side separately from the refrigerator and freezer drawers.
Generally, very much so. Most drawer faults are mechanical — slides, soft-close, gaskets — and those are serviceable parts on a current, well-supported line. Replacing an integrated drawer unit is far more disruptive and costly than repairing the part that's actually worn.
It depends on whether it's a mechanical part like a slide or a refrigeration fault, so we quote ranges rather than a flat fee. Ranges are estimates (market average +35%); exact price confirmed on-site.
